How to package a video for HLS streaming

HLS is a video cut into short files plus a text playlist that lists them. A player reads the playlist, fetches the pieces in order, and with several quality levels it switches between them to suit the connection. Nothing about it needs a streaming server: you make the files once and put them on any web host or CDN.

ffmpeg -i input.mp4 -c:v libx264 -preset veryfast -crf 21 \
  -force_key_frames "expr:gte(t,n_forced*6)" -c:a aac -b:a 128k \
  -f hls -hls_time 6 -hls_playlist_type vod \
  -hls_segment_filename 'seg_%03d.ts' index.m3u8

#EXTM3U
#EXT-X-VERSION:3
#EXT-X-TARGETDURATION:6
#EXT-X-MEDIA-SEQUENCE:0
#EXT-X-PLAYLIST-TYPE:VOD
#EXTINF:6.000000,
seg_000.ts
#EXTINF:6.000000,
seg_001.ts
...
#EXTINF:6.000000,
seg_004.ts
#EXT-X-ENDLIST

Every command here was run with FFmpeg 7.1.5 (Debian 13) and the output shown is what it printed.

Why the keyframe flag matters

The segmenter can only cut where a new segment can be decoded on its own, which is at a keyframe. -hls_time 6 is a target, not a guarantee: FFmpeg cuts at the first keyframe after 6 seconds. Leave the keyframes to the encoder and they land wherever it likes. The same 30 fps clip, without -force_key_frames:

#EXT-X-TARGETDURATION:8
#EXTINF:8.333333,
seg_000.ts
#EXTINF:8.333333,
seg_001.ts
#EXTINF:8.333333,
seg_002.ts
#EXTINF:5.000000,
seg_003.ts

8.33 seconds is x264's default maximum gap between keyframes (250 frames) at 30 fps. -force_key_frames "expr:gte(t,n_forced*N)" places one every N seconds whatever the frame rate, so N should always equal -hls_time. The older way is -g with a frame count (-g 180 is 6 seconds only at 30 fps), which goes wrong the moment a source arrives at 25 or 60 fps.

Six seconds is the segment length Apple recommends in its HLS authoring guidance. Shorter segments start faster and switch quality sooner, at the cost of more files and requests.

Several quality levels and a master playlist

For adaptive streaming, encode the same video at several sizes and bitrates and add a master playlist that lists them. One FFmpeg run does all of it: split makes three copies of the picture, scale sizes each one, and -var_stream_map says which video and audio streams form each rendition.

ffmpeg -i input.mp4 \
  -filter_complex "[0:v]split=3[a][b][c];[a]scale=-2:1080[v0];[b]scale=-2:720[v1];[c]scale=-2:360[v2]" \
  -map "[v0]" -map "[v1]" -map "[v2]" -map 0:a -map 0:a -map 0:a \
  -c:v libx264 -preset veryfast -force_key_frames "expr:gte(t,n_forced*6)" \
  -b:v:0 5000k -maxrate:v:0 5500k -bufsize:v:0 10000k \
  -b:v:1 2800k -maxrate:v:1 3000k -bufsize:v:1 5600k \
  -b:v:2 800k  -maxrate:v:2 900k  -bufsize:v:2 1600k \
  -c:a aac -b:a 128k -ac 2 \
  -f hls -hls_time 6 -hls_playlist_type vod -hls_flags independent_segments \
  -hls_segment_filename 'v%v/seg_%03d.ts' \
  -master_pl_name master.m3u8 \
  -var_stream_map "v:0,a:0 v:1,a:1 v:2,a:2" 'v%v/index.m3u8'

%v becomes the rendition number, so you get a folder per quality and one master.m3u8 at the top:

.
|-- master.m3u8
|-- v0
|   |-- index.m3u8
|   |-- seg_000.ts
|   ...
|-- v1
|   |-- index.m3u8
|   ...
`-- v2
    |-- index.m3u8
    ...

FFmpeg writes the master playlist from what it actually encoded, with the measured bandwidth, the frame size and the codec strings a player uses to decide what it can play:

#EXTM3U
#EXT-X-VERSION:6
#EXT-X-STREAM-INF:BANDWIDTH=5222389,AVERAGE-BANDWIDTH=5175163,RESOLUTION=1920x1080,CODECS="avc1.640028,mp4a.40.2"
v0/index.m3u8

#EXT-X-STREAM-INF:BANDWIDTH=2992709,AVERAGE-BANDWIDTH=2954608,RESOLUTION=1280x720,CODECS="avc1.64001f,mp4a.40.2"
v1/index.m3u8

#EXT-X-STREAM-INF:BANDWIDTH=965568,AVERAGE-BANDWIDTH=949324,RESOLUTION=640x360,CODECS="avc1.64001e,mp4a.40.2"
v2/index.m3u8

scale=-2:720 sets the height and works out the width from the source's shape, rounded to an even number. A 4:3 source comes out 960×720 and a portrait phone video 406×720, never stretched. The bitrates are a starting point for 16:9 H.264; Apple's authoring guidance has a full ladder. Keep -force_key_frames the same for every rendition, as it is here, so the segments line up and the player can switch between them at any boundary.

fMP4 segments instead of .ts

Add two options and the same encode is written as fragmented MP4: an init.mp4 with the setup data and .m4s media segments.

ffmpeg -i input.mp4 -c:v libx264 -preset veryfast -crf 21 \
  -force_key_frames "expr:gte(t,n_forced*6)" -c:a aac -b:a 128k \
  -f hls -hls_time 6 -hls_playlist_type vod \
  -hls_segment_type fmp4 -hls_fmp4_init_filename init.mp4 \
  -hls_segment_filename 'seg_%03d.m4s' index.m3u8

#EXTM3U
#EXT-X-VERSION:7
#EXT-X-TARGETDURATION:6
#EXT-X-MEDIA-SEQUENCE:0
#EXT-X-PLAYLIST-TYPE:VOD
#EXT-X-MAP:URI="init.mp4"
#EXTINF:6.000000,
seg_000.m4s
...

For H.264 there is no need to switch: .ts plays everywhere HLS plays. Use fMP4 when you encode HEVC (Apple's players take HEVC in fMP4 segments), or when the same segments also have to feed a DASH or CMAF setup. The same two options work in the ladder command.

Check what you made

Apple's mediastreamvalidator is the thorough check, but it is a macOS download from Apple's streaming tools page and needs a developer sign-in. FFmpeg itself covers the three things that usually go wrong.

:::steps title="Three checks"

1. The playlist parses and lists every rendition. ffprobe reads a master playlist as a set of programs:

   ffprobe -v error -show_entries program=program_id:program_tags=variant_bitrate:stream=codec_name,width,height -of compact master.m3u8


   program|program_id=0|tag:variant_bitrate=5222389|stream|codec_name=h264|width=1920|height=1080
   stream|codec_name=aac
   program|program_id=1|tag:variant_bitrate=2992709|stream|codec_name=h264|width=1280|height=720
   stream|codec_name=aac
   program|program_id=2|tag:variant_bitrate=965568|stream|codec_name=h264|width=640|height=360
   stream|codec_name=aac


2. Every segment starts on a keyframe. The first frame of each .ts should be an I frame:

   for s in seg_*.ts; do printf "%s " $s; ffprobe -v error -select_streams v -show_entries frame=pict_type -read_intervals "%+#1" -of default=nw=1:nk=1 $s | head -1; done


   seg_000.ts I
   seg_001.ts I
   seg_002.ts I
   seg_003.ts I
   seg_004.ts I


   Anything other than I on a segment means the cut fell between keyframes. The #EXTINF lines in the playlist should match your -hls_time, apart from the last segment.

3. It plays end to end. Decoding every rendition to nowhere reads each segment the playlists list, and prints nothing when all is well:

   ffmpeg -v error -i master.m3u8 -map 0 -f null - && echo "exit $?"


   exit 0


:::

Then open it in a real player. Safari plays an .m3u8 in a plain <video> tag; other browsers need a player library such as hls.js or Video.js.

Serving it

HLS is static files. Upload the whole folder, keep the relative paths, and point the player at master.m3u8. Two headers decide whether it plays.

Content types. The HLS specification (RFC 8216) says a playlist must be served as application/vnd.apple.mpegurl (or audio/mpegurl). nginx 1.26's stock mime.types already has application/vnd.apple.mpegurl for .m3u8, video/mp2t for .ts and video/mp4 for .mp4, but no entry for .m4s, which then goes out as the default type. On an object store or CDN, check the type each file was uploaded with.

CORS. When the player page and the files are on different domains, a player library fetches the playlist and segments with JavaScript, and the browser blocks them unless the files carry Access-Control-Allow-Origin.

An nginx block that sets both:

location ~ \.(m3u8|ts|m4s|mp4)$ {
    types {
        application/vnd.apple.mpegurl m3u8;
        video/mp2t                    ts;
        video/iso.segment             m4s;
        video/mp4                     mp4;
    }
    add_header Access-Control-Allow-Origin "*";
}

A types block inside a location replaces the whole list for that location, which is why all four are named. Checked with curl -I against nginx 1.26.3, with the ladder in c/ and the fMP4 encode in e/:

-- c/master.m3u8
HTTP/1.1 200 OK
Content-Type: application/vnd.apple.mpegurl
Access-Control-Allow-Origin: *
-- c/v0/seg_000.ts
HTTP/1.1 200 OK
Content-Type: video/mp2t
Access-Control-Allow-Origin: *
-- e/seg_000.m4s
HTTP/1.1 200 OK
Content-Type: video/iso.segment
Access-Control-Allow-Origin: *

* lets any site embed your stream. Put your own site's origin there instead if that matters. FFmpeg also played the ladder over HTTP from that server without an error.

In the browser

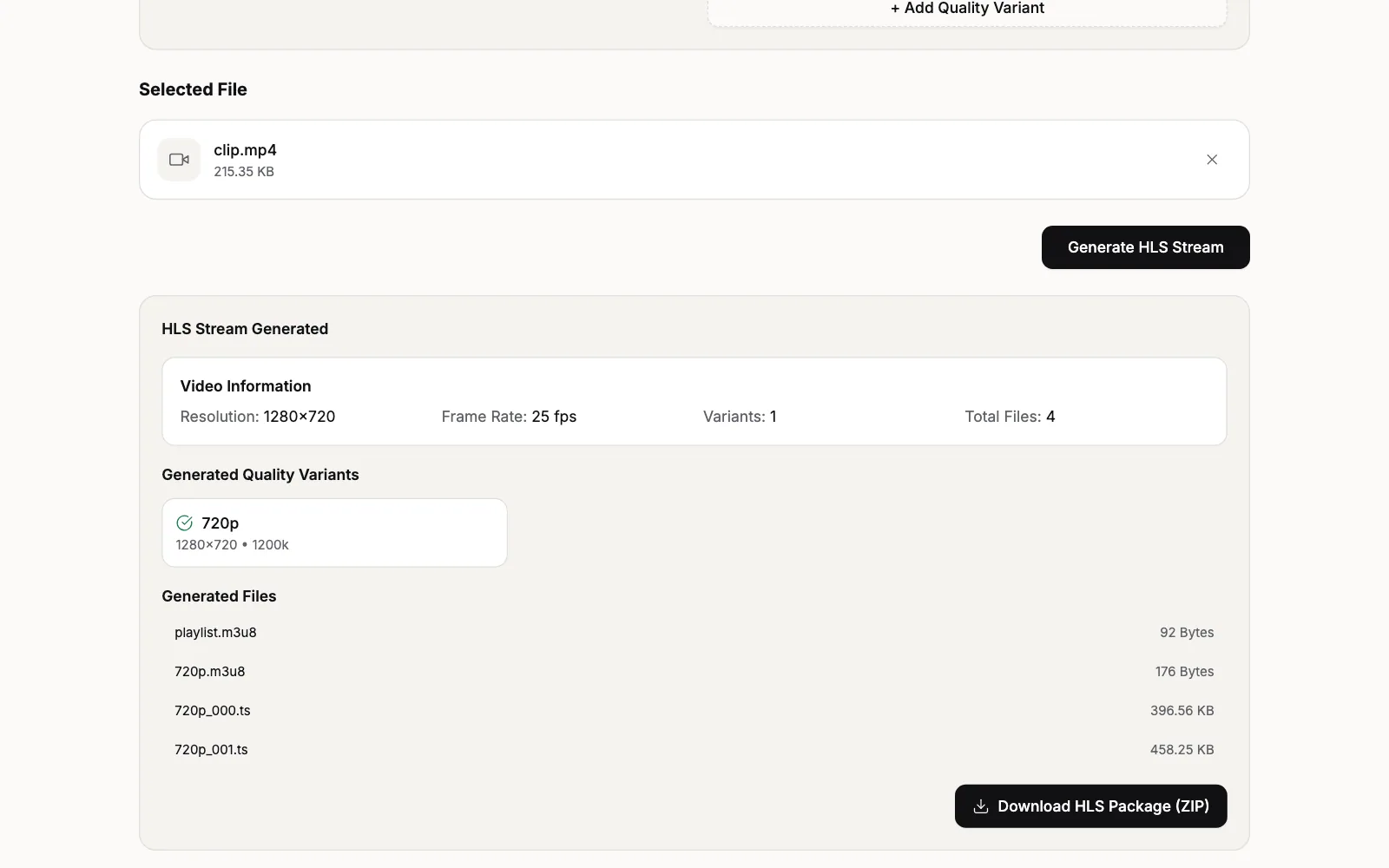

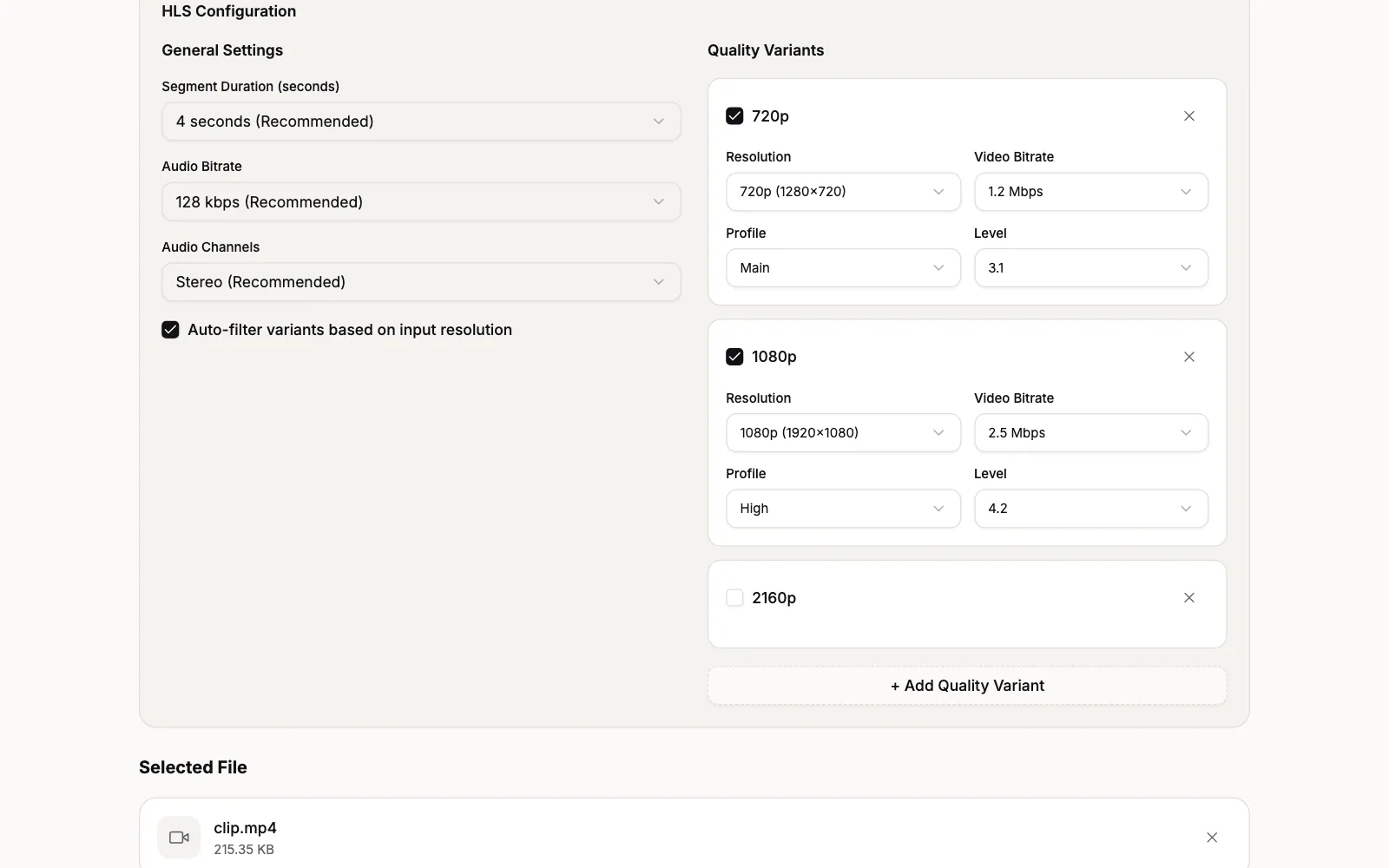

The HLS Stream Generator runs FFmpeg compiled to WebAssembly, so nothing is uploaded. It re-encodes every rendition to H.264 and AAC with a keyframe forced every 4 seconds.

Audio only

A podcast or a music stream is the same job without the picture, and there are no keyframes to line up: audio frames are tens of milliseconds long. Two bitrates, the low one in mono:

ffmpeg -i episode.mp3 -map 0:a -map 0:a -vn -c:a aac \
  -b:a:0 64k -ac:a:0 1 -b:a:1 128k \
  -f hls -hls_time 6 -hls_playlist_type vod \
  -hls_segment_filename 'a%v/seg_%03d.ts' -master_pl_name master.m3u8 \
  -var_stream_map "a:0 a:1" 'a%v/index.m3u8'

#EXTM3U
#EXT-X-VERSION:3
#EXT-X-STREAM-INF:BANDWIDTH=72052,AVERAGE-BANDWIDTH=72524,CODECS="mp4a.40.2"
a0/index.m3u8

#EXT-X-STREAM-INF:BANDWIDTH=144857,AVERAGE-BANDWIDTH=143173,CODECS="mp4a.40.2"
a1/index.m3u8

Whichever route you took, you now have a folder with a master playlist at the top. Upload it as it is, check the two headers, and give your player the URL of the master playlist.
